Grâce aux composants électroniques de l'engrenage ondulé ReBeL entièrement intégré, des capacités MRK sont possibles. Le robot ReBeL est ainsi adapté aux applications
des applications industrielles et privées comme cobot ou robot de service.
Il est jusqu'à deux fois plus léger que les autres cobots et ne nécessite pas d'armoire électrique, car la commande est intégrée dans le pied. Le Rebel est parfaitement adapté aux applications mobiles, aux services d'enlèvement et de livraison, aux tâches de pick & place ou comme aide au montage.

The weight of an end effector will decrease the available payload of your robot.

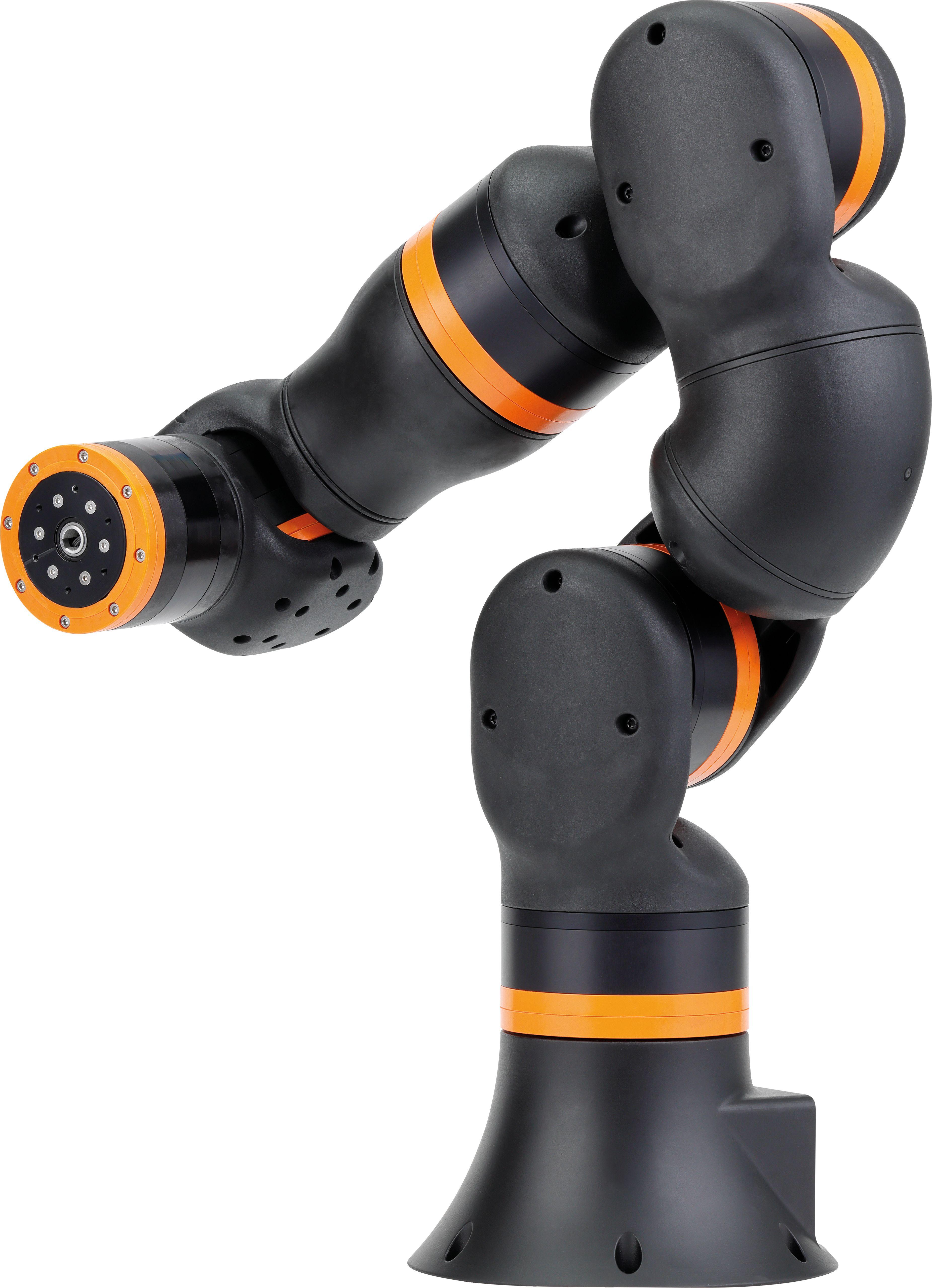

ReBeL Cobot - 6 degrés de liberté, portée de 664 mm

Robots

CAD file

Technical documentation

Workspace

Documents for partly completed machinery

Vendor link

2eWVWVb75Br9TK2pqbZxJY

The motor controller is addressed via the CAN bus; a simple protocol is used. This protocol is not compatible with CANopen. A description of the interface can be found here:

An example project including source code in C# helps with the initial implementation. These can also be found under the link above. Both examples use the PCAN-USB adapter from Peak-Systems to establish the connection from USB to the CAN bus. Other adapters can be used accordingly.

Customize the ReBeL robot to your needs and receive a summary by email.

ReBeL configurator

Automated quality control with igus ReBeL

Automatisierte Qualitätskontrolle mit dem igus ReBeL

Quality Control

Quality control

质量控制

Kontrola jakości

品質管制

Kwaliteitscontrole

品質管理

Control de calidad

품질 관리

Contrôle qualité

quality

Customer Tests

Testen door klanten

Tests clients

Müşteri Testleri

客户测试

Tes Pelanggan

Testes de clientes

Testy klienta

การทดสอบของลูกค้า

客戶測試

Kundentests

Test dei clienti

customer-tests

In this customer application, a traditional task from the functional and quality inspection domain has been automated using a collaborative robot. Previously, this task required a dedicated worker. Thanks to the deployment of the cobot, this worker can now be assigned to more complex and value-added tasks. The cobot takes over the repetitive and monotonous inspection processes with high precision and reliability. The investment in the cobot was relatively low and paid off completely within a few months, leading to significant cost savings and increased operational efficiency. Additionally, the cobot improves working conditions by relieving employees from tedious tasks, allowing them to develop further and take on more demanding responsibilities.

Produktion

Manufacturing

Production

製造業

Fabricação

Productie

Produkcja

การผลิต

制造业

Üretim

제조

Produzione

manufacturing

Automated loading and unloading of a laser engraving machine

Automatisierte Be- und Entladung einer Lasergravur Maschine

Scanner

Tarayıcı

스캐너

Skaner

掃描器

扫描

เครื่องสแกน

スキャナー

scanner

Handhabung

Material handling

Manuseio de materiais

Malzeme taşıma

Przeładunek materiałów

Manipulación de materiales

倉儲物流

物料搬运

Materiaal handling

ระบบจัดการสินค้า

물류 산업

Movimentazione dei materiali

マテリアルハンドリング

Manipulation

material-handling

Bestückung

Machine tending

Obsługa maszyn

Mantenimiento de máquinas

機械加工

Machine bedienen

机器操作

기계 관리

機器維護

Équipement

machine-tending

总览

In this specific customer application, a cost-effective solution for loading and unloading a laser engraving machine was sought and successfully implemented. The igus ReBeL robot takes on the task of picking up the parts to be engraved and precisely placing them into the machine. Subsequently, a linear system equipped with a laser engraving head carries out the engraving process. Once the engraving is complete, the robot removes the processed part from the machine and places it for further processing or packaging.

Thanks to the low cost of the cobot, the investment in this automated solution pays off in a very short time, making it particularly attractive for companies looking to reduce their production costs while simultaneously increasing efficiency.

ReBeL Cobot with easy to use vacuum gripper for pick and place

ReBeL Cobot mit einfach zu bedienendem Vakuumgreifer für Pick and Place

Pick & Place

Pick-and-Place

Al ve yerleştir

拾取&放置

픽 앤 플레이스

ピック&プレース

Pick &amp: Place

取放 (揀選 & 放置)

Pick and place

หยิบและวาง

pick-n-place

Süper düşük maliyetli

Superlage kosten

Superlowcost

Superniskikoszt

超低成本

Coût très faible

Super low cost

ซุปเปอร์โลว์คอส

Custo superbaixo

초저가

经济型

superlowcost

The ReBeL Cobot, equipped with the CobotPump from Schmalz, offers a versatile solution for pick-and-place applications. It has one gripping point and can be configured with up to four contact points for additional stability. These features make it ideal for efficient handling tasks. You do not need compressed air just 24v form the robot controller. The ReBeL Cobot with the CobotPump is a cost-effective option for companies looking for a reliable automation solution.

Printing of semi-finished products

Bedruckung von Halbzeugen

Spritzguss

Injection molding

注塑成型

injection-molding

In this video, we present an innovative solution for the printing of semi-finished products in production. This application utilizes our ReBeL robot and IRC to optimize the process and maximize efficiency. Special attention is given to the precise control and skillful handling of the semi-finished products throughout the entire printing process to ensure high quality and production efficiency. The benefits of this solution include increased production speed, improved print quality, and reduced scrap. Additionally, a low footprint is ensured, facilitating integration into various production environments.

Nachgelagertes Gewindeschneiden

Downstream thread cutting

In this video, we present an advanced solution for downstream thread cutting in production. The setup of our ReBeL robot and the integration of the IRC are shown, as well as the operation of the rotary conveyor and the camera for precise detection and positioning of the workpieces. The gripper is demonstrated in action, handling the workpieces safely and efficiently. The step feeder supports the process with its precise conveying technique, ensuring that the entire system operates smoothly and efficiently thanks to reliable power and data transmission. The benefits of this solution include increased production speed, reduced scrap, and improved workplace safety. Additionally, a low footprint is ensured, facilitating integration into various production environments.

Pick and Place customer application with RBTX vibratory feeder and ReBeL cobot

Pick and Place Anwendung mit RBTX Bauteilervereinzelner und ReBeL Cobot

In this customer application, plastic parts needed to be sorted correctly using vibration so that they could be recognized by a camera and picked up by a robot through coordinate transmission. This was necessary to ensure precise and efficient handling of the parts. The RBTX Varioshaker lite, a cost-effective product designed for simple applications from the RBTX range, was used in this example.

The Varioshaker lite was combined with a Rebel robot, an ifm 2D camera, and a Schunk EGP 25 gripper. The ifm 2D camera captured the position of the sorted plastic parts and transmitted the coordinates to the Rebel robot. The robot then used the Schunk EGP 25 gripper to precisely pick up and process the parts. This combination provided an efficient and cost-effective solution for the automated handling of plastic parts.

Automated dispensing simulation with igus cobot

Automatisiertes Dispensieren mit igus Cobot

Gluing

접착

涂胶

膠合

Kleben

接着

Lijmen

Klejenie

Collage

gluing

Adhesive and dispensing processes are complex operations that, when performed by humans, have a significant potential for error. This is due to the precision and consistency these processes require - attributes that are difficult to achieve when performed manually. Moreover, direct contact with the materials and substances used in these processes can lead to health issues, including skin irritations and allergic reactions.

In our most recent customer test, we demonstrated how these processes can be automated efficiently and cost-effectively. Through automation, companies can not only improve the quality and consistency of their products but also ensure the health and safety of their employees.To illustrate the automation, we simulated the process using a pen on the original component.

This served to demonstrate the accuracy and precision of the automated system. It showed how the system is capable of performing the same task over and over again with the same level of accuracy - an ability that is difficult to achieve when performed manually. This test served as compelling evidence of the benefits of automating adhesive and dispensing processes.

Laboratory

Laboratório

Labor

Laboratorio

Laboratoire

Laboratorium

試験施設

Laboratuvar

实验室

實驗室

연구소

ห้องปฏิบัติการ

laboratory

Automotive

Automobile

Automoción

汽車產業

자동차 산업

汽车工业

Przemysł motoryzacyjny

自動車

automotive

Pick and Place mit verschiedenen Bauteilen

Pick and place with various components

In a current customer test, three similar workpieces are being used to demonstrate the efficiency and precision of a cobot. The cobot is programmed to pick up the components independently and insert them correctly into a fixture. This task demonstrates the cobot's ability to handle different objects and position them precisely, which is crucial for the automation of assembly processes. Cobots offer added value in production thanks to their flexibility and adaptability, as they not only increase efficiency but also help to reduce the workload on employees.
